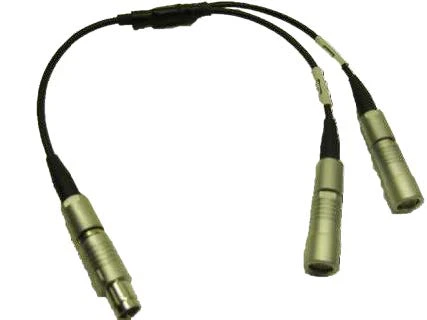

CMAC 5079, SKF, Splitter, Four Channel Straight Cable (ACC, CBL, SPLITTER, 2 ACCELS, CMXA80)

The CMAC 5079 cable is used for connecting to either CH1 or CH2 on the CMXA 80 and CMXA 48. If connected to CH1, lead A gives channel 1 and lead B gives channel 4. If connected to CH2, lead A gives channel 2 and lead B gives channel 3.

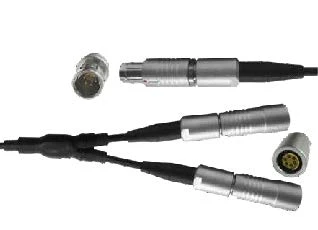

• Connectors: Two Fischer type 103 six pin female sockets to one Fischer type 103 six pin male
• Length: 45 cm (1.5 ft.) straight

Note: Two cables are required to collect four channel measurements

Note: For CMXA 45 and CMXA 75, this cable can be used in CH2 only to give three single axis simultaneous accelerometer inputs. A single accelerometer is connected to CH1 giving channel 1, then the cable into CH2 giving the same inputs as for CH2 of the CMXA 80.
