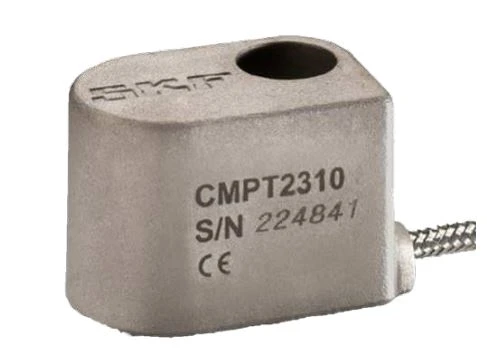

CMPT 2310, SKF, Accelerometer For Heavy-duty Environments, Integral, Braided Cable, Side Exit, 100mV/g, 5m Cable

The CMPT2310 is a physically rugged accelerometer optimized for use in heavy-duty environments such as the following industries:
• Mining
• Mineral Processing
• Cement

In these industries, dust, mud and flying debris are commonplace, together with low rotational speeds. When used on shakers and screens, the accelerometer must also withstand high levels of continuous and random vibration. The sensor uses an integral cable with stainless over-braid for protection in heavy-duty environments.

Features:
• For use with all SKF on-line surveillance systems
• 100 mV/g sensitivity
• Physically rugged
• Meets CE, EMC requirements

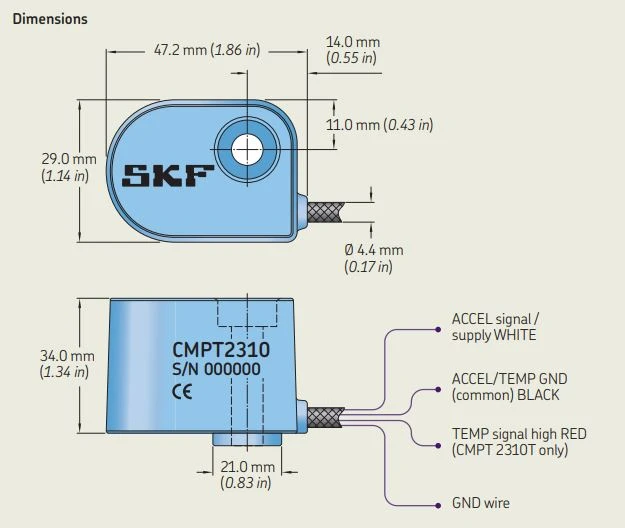

• Low profile, side exit industrial accelerometer with M6 ×1 and 1/4-28 UNF socket head cap screws provided
• 5m (16.4 ft.) integral cable with stainless steel over-braid
• Corrosion resistant and encapsulation sealed
• The internal sensor capsule is isolated from the machine ground
• Low noise, highly shock resistant
• Overload protected electronics
• Reverse wiring protection
