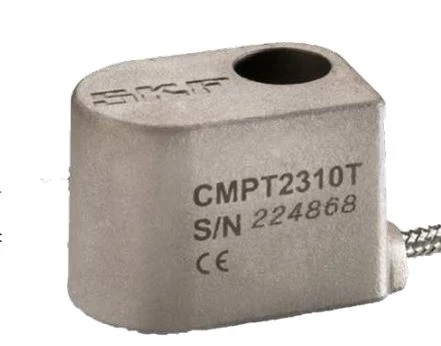

CMPT 2310T-M8X10, SKF, Sensor For Heavy-duty Environments, Side Exit, Acceleration And Temperature, 100mV/g, Temp, 5m Cable

The CMPT 2310T is a physically rugged accelerometer that also provides a surface temperature measurement. The sensor is optimized for use in heavy-duty environments such as the following industries:
• Mining
• Mineral Processing
• Cement

In these industries, dust, mud and flying debris are commonplace, together with low rotational speeds. When used on shakers and screens, the accelerometer must also withstand high levels of continuous and random vibration. The sensor uses an integral cable with stainless over-braid for mounting where protective conduit is not available.

Features:
• For use with all SKF on-line surveillance systems
• 100 mV/g sensitivity
• Acceleration (mV/g) and temperature (mV/°C)
• Physically rugged
• Meets CE, EMC requirements
• 5 m (16.4 ft.) integral cable with stainless steel over-braid
• Corrosion resistant and encapsulation sealed
• The internal sensor capsule is isolated from the machine ground
• Low noise, highly shock resistant
• Overload protected electronics
