CMPT 2310TAX15, SKF, Mining Group ? Intrinsically Safe Accelerometer (IEXEcx / ATEX Certified), 100mV/g, Temp, 15m Cable

The CMPT 2310A / CMPT 2310TA models are piezoelectric acceler-ometer sensors especially made for the monitoring of machinery operating in hazardous mining environments. They are highly relia-ble with their high shock limit, excellent thermal stability and mini-mum mass loading effects.
The CMPT 2310TA model sensors includes a precision integrated circuit temperature sensor. The CMPT 2310TA temperature output voltage is linearly proportional to the temperature (°C) and does not require external calibration or trimming to provide high accuracy over the full 0 to +110 °C temperature range.

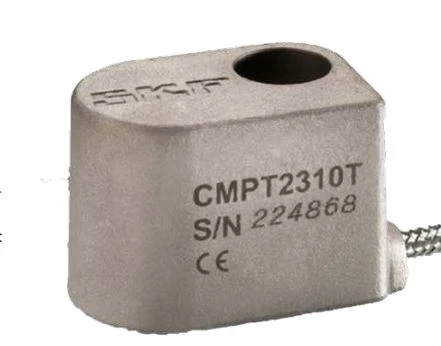

The CMPT 2310A / CMPT2310TA sensors are encapsulation sealed in a stainless steel body and have an integral stainless steel wire over-braided cable. The sensors have low profile housing and a side exit integral cable for use in a wide range of industrial applica-tions where harsh operating conditions and limited mounting space prevail. The stainless steel and encapsulated construction makes them suitable in corrosive and wet environments. The sensor cable is double insulated and highly resistant to abrasion and wear. It has excellent signal transmission characteristics, low capacitance, redun-dant shielding and high mechanical durability. The transducer and internal cable shield/ground are isolated from the sensor housing to prevent ground loops.
The Intrinsic Safe CMPT 2310A / CMPT 2310TA sensors can be used with any Intrinsic Safe portable vibration data collector having the allowable terminal and isolation parameters, as defined in the features section.
