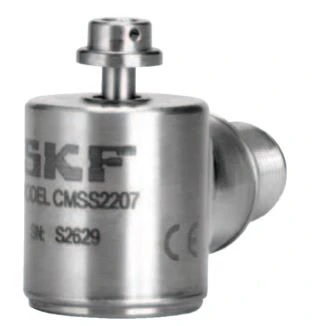

CMSS 2207, SKF, Industrial Accelerometer, High Temperature, Side Exit (XDCR, ACCL, LO PF, HI TEMP)

The CMSS 2207 accelerometer is a multi-purpose sensor with an elevated temperature resistance to extend life and performance in applications that are known to provide a challenging hot environment. The sensor is most commonly deployed in the following industries:
• Pulp and Paper – dryer sections
• Mineral Processing – ovens and kilns
• Metalworking – hot rolling mills

Features:
• Optimal for use with SKF on-line system IMx and all portable data collection instruments
• Rugged, economical and all around high temperature, general purpose sensor for up to 150 °C (300 °F) operating temperature
• 100 mV/g sensitivity to optimize use in multiple applications
• Exceptional bias voltage (BV) stability at elevated temperatures
• Designed for exceptional low noise level over a wide temperature range
• Meets CE, EMC requirements

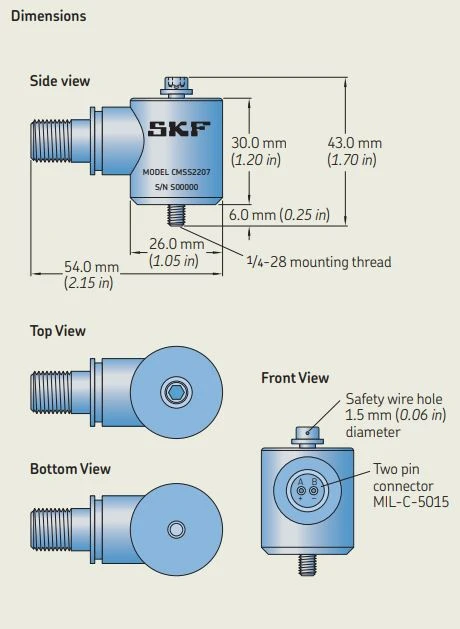

• Captive mounting bolts (1/4-28 or M6 × 1.0) provided
• Corrosion resistant and hermetically sealed for installation in high humidity areas
• Reverse polarity wiring protection
