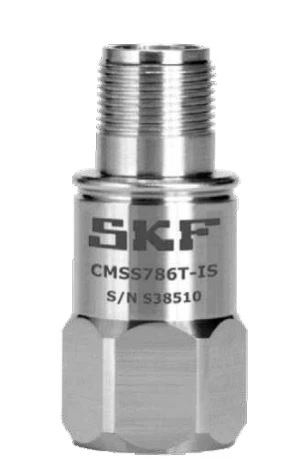

CMSS 786T-IS, SKF, Agency Approved Sensor, Acceleration And Temperature, Straight Exit, Intrinsically Safe (IS) Rated. (XDCR, ACCL/W TEMP, IS, CA, KEMA)

The CMSS786T-IS / CMSS 786T-D2 is a cost-effective, dual output sensor ideal for applications where both vibration and surface temperature measurements are required. The sensor is suitable for use in hazardous areas typically found in the following industries:
• Oil and Gas
• Refining
• Petrochemicals

Common applications include general purpose machines such as pumps, motors, fans and gearboxes. The CMSS 786T-IS is particularly suitable for the SKF on-line surveillance and protection systems, and the CMSS786T-D2 is suitable for the Machine Condition Transmitters (MCT), as in both cases no additional barriers are required for use in hazardous areas.

Features:
• Optimal for use with SKF on-line surveillance systems and protection systems when used with the appropriate safety barriers, accessories and/or methods as required by the particular hazardous area classification
• Economical, top exit design
• Rugged, corrosion resistant and hermetically sealed
• Case isolated
• Meets CE, EMC requirements
• ESD protection
• Reverse wiring protection
