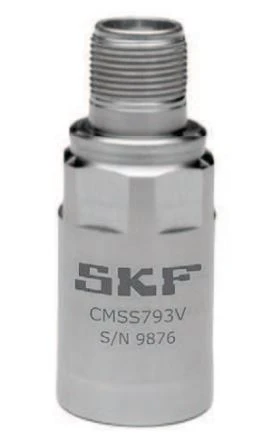

CMSS 793V, SKF, Piezoelectric Industrial Velocity Sensor, Straight Exit (XDCR, VEL, STD)

The CMSS 793V is a precision velocity sensor mainly for use in the following industries:
• Oil and Gas
• Refining
• Petrochemicals
• Power Generation

Corporate standards and practices in these industries often require the use of velocity transducers, and piezoelectric devices such as the CMSS 793V eliminate the moving parts associated with self-generating velocity sensors (which will lead to degradation over time). The CMSS 793V is an accelerometer with internal integration electronics in order to provide velocity as an output.

Common applications would include API 670 standard monitoring of pumps, fans and compressors.

Features:
• Optimal for use with SKF on-line surveillance systems and protection systems when used with the appropriate safety barriers, accessories and/or methods as required by the particular hazardous area classification
• Rugged, corrosion resistant and hermetically sealed
• Case isolated
• Meets stringent CE, EMC requirements
• ESD protection
• Reverse wiring protection
Recommended connector/cable assembly: CMSS 942 series
