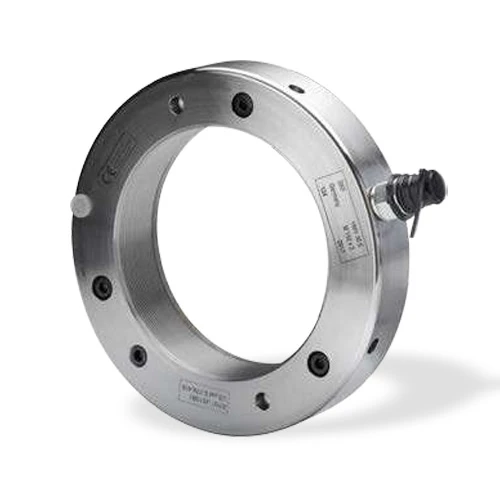

HMV 38E, SKF, Hydraulic Nut (E Series)
Original price was: £304.00.£95.99Current price is: £95.99.
- Multiple safe payment methods
- Top Quality Products
- Shop with confidence, enjoy free returns.
- No Compromise on Quality
Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. Dismounting bearings mounted on either adapter or withdrawal sleeves can also be simplified by using an SKF Hydraulic Nut.
• Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited.
• A spare set of piston seals and maintenance kit is supplied as standard.
• Nut supplied with a quick connection coupling to fit the SKF hydraulic pumps.
| Brand | SKF |
|---|---|
| Mfr Part No. | HMV 38E |
| Acorn Code | HMV38E-SKF |
| HS Code | 8482 99 00 90 |
| COO | DE |
| Manufacturer Product Code | HMV 38E |
|---|---|
| Basic Product Description | Hydraulic nut (E Series) |
| UOM | Each |
| Piston inner diameter (d1) mm | 191 |
| Piston outer diameter (d2) mm | 259 |
| Nut body outer diameter (d3) mm | 270 |
| Width of nut body (B) mm | 42 |
| Piston width (B1) mm | 8 |
| Weight (Kg) | 10.5 |
| Thread | M 190×3 |
| Mounting | HMV38/233983 |
| Permitted piston displacement (mm) | 7 |
| Piston area (mm2) | 11.5 |
| Maximum allowed working pressure (MPa) | 80 MPa |
| Product type | Nut |
| EAN code | 7316577014290 |
