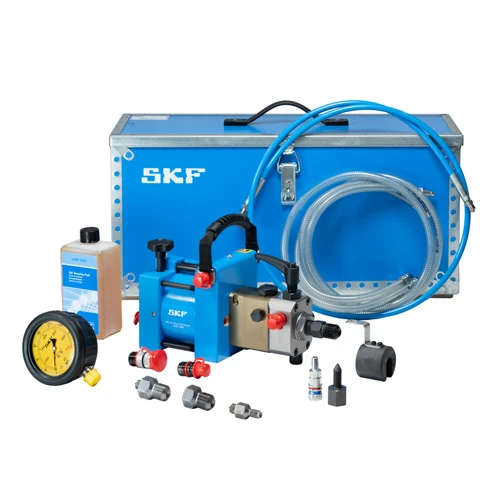

THAP 300E/K10, SKF, Air-driven Oil Injector For Pressures Upto 300 MPa/43, 500 Psi – Large Kit

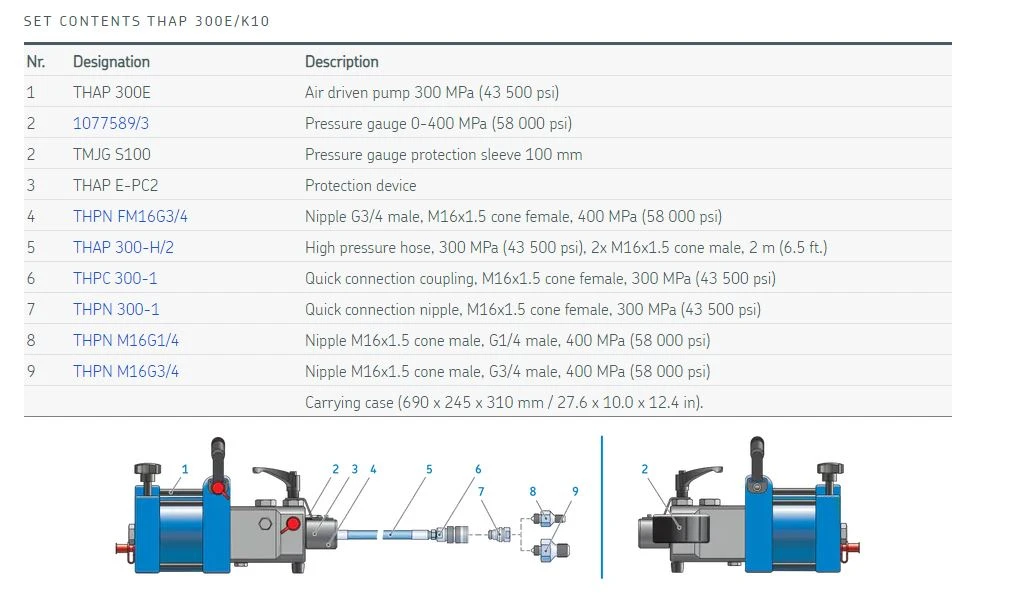

SET CONTENTS THAP 300E/K10:
Nr.DesignationDescription
1THAP 300EAir driven pump 300 MPa (43 500 psi)
21077589/3Pressure gauge 0-400 MPa (58 000 psi)​​​​​​​
2TMJG S100Pressure gauge protection sleeve 100 mm
3THAP E-PC2Protection device
4THPN FM16G3/4Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi)
5THAP 300-H/2High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.)
6THPC 300-1Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi)
7THPN 300-1Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi)
8THPN M16G1/4Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi)
9THPN M16G3/4Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi)
Carrying case (690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in).
